If you wanted to connect two sites over the internet, the very popular method is to use the IPsec. By default, the IP alone doesn’t provide security, so we need to wrap the IP packet with IPsec to encrypt the traffic inside the IP. Once the IPsec connection is established between two sites, no one on the internet can decrypt the packet.
Does Pfsense support Site to Site VPN using IPsec?
When I first heard about the Pfsense firewall, I asked the same question: Is it possible to set up an IPsec tunnel on a free and opensource firewall?
You can build multiple site-to-site VPN using IPsec Tunnels on a Pfsense firewall, and it works great just like any other firewall would. So if you are on a tighter budget and wanted to spin up a firewall in the network, Pfsense is the way to go.
If you wanted to set up a Site to Site VPN using Pfsense, it is first to build them on a lab environment before deploying it in the production. Initially, when I wanted to set up an IPsec VPN, I was unsure how the routing would work, so I built the lab and set up a basic IPsec network, and I was ready to deploy it to production.
So if you are like me wanted to test things out in the lab, follow the step by step guide here.
You can spin up the pfSense lab in different ways, follow the appropriate guide below that works for your environment, and build the lab per the guide here.
How to Setup IPsec Tunnel between Paloalto and PFsense?
How To Configure Palo Alto Site To Site VPN Using IPsec?
How To Configure IPsec VPN Between pfSense And Cisco Router?
How To Configure IPsec Site-to-Site VPN On Cisco Router?
How have I built the Pfsense IPsec topology?
Before we build the IPsec tunnel, lets talk about the lab that we are going to configure the tunnel.
You can skip this part if you want to go right into the configuration.

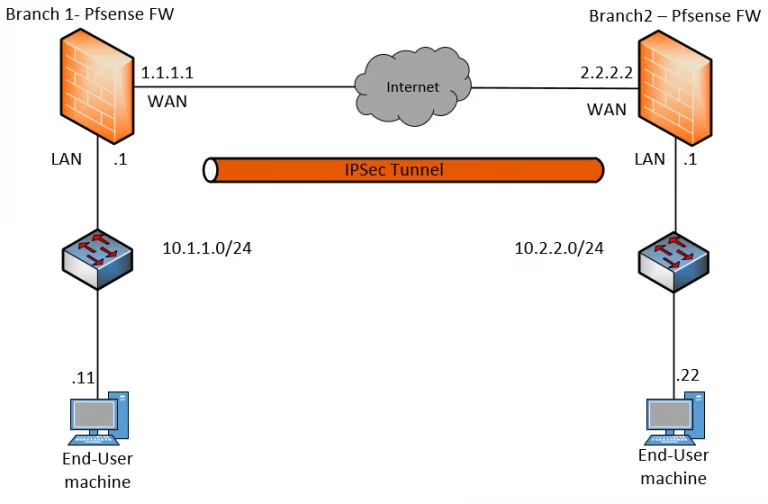

Below is the topology that we are going to use. If you are using GNS3 and do not know how you can set up Pfsense in GNS3, I highly recommend you start here and come back.
- Create Site to Site IPsec tunnels between the branches.
- Both the LAN hosts should be able to talk to each other over the tunnel.
- Enable ICMP between the branches then all other protocols.
If you are not using GNS3, please set up the lab as per the above topology.
Simulate the internet router?
The confusing part will be the internet. How you can get two different IPs to get connected, branch 1 has an IP address of 188.8.131.52, and Branch 2 has an IP address of 184.108.40.206.
To simulate the internet, I will use a cisco router that can act as an internet router.
You don’t have to do much on the router, drag and drop a router and configure 220.127.116.11 on the branch 1 side and configure 18.104.22.168 on the branch2 side.
Here is the router configuration.
Connect the Pfsense firewall to the internet router.
After you configured the internet router, make sure that the Firewall’s default gateway pointed to the internet router. Please note that we are not connecting the Firewall to the real internet. We are just simulating an internet using a cisco router to provide an end to end IP connectivity from branch 1 to branch2.
Branch1 WAN gateway configuration.
Branch2 WAN gateway configuration.
Configure the PfSense LAN side.
I have configured the Pfsense LAN side with an IP address 10.1.1.0/24 for branch1 and 10.2.2.0/24 for the Branch2.
Connect the local machine to the Pfsense LAN.
Once you configured the LAN side of the Pfsense, the easiest way you can access the web GUI is via your local machine.
Please check out step 6 in this articles to know how you can connect the Pfsense LAN side to your local machine.
I will be connecting a cloud (VMnet6) to the Branch1 firewall LAN side and another cloud (VMnet7) to the Branch2 firewall LAN side.
Simulate the end-user machine.
We are going to use end-user machine to test the IPsec connectivity after it is deployed. We don’t need to have any big client operating system for this to test. You could use a tiny Linux mint host, Webterm or even Cisco Router.
For simplicity’s sake, I am going to use a cisco router as the end-user machine. So I dragged and dropped the Cisco router to the topology and followed the below.
- For both end-user machines (cisco routers) I disabled the IP routing features with no IP routing. This would make the router to act as a client machine.
- On the Branch1 end device, I pointed the gateway as the Pfsense LAN IP 10.1.1.1.
- Similarly, on Branch2, I pointed to 10.2.2.2.
- Finally, I configured IP address 10.1.1.11 and 10.2.2.22 for branch1 and branch2, respectively.
- I also configured http service on this router, which we can test at the end of the lab.
Below is the actual configuration.
Branch 1 end host.
no ip routing interface GigabitEthernet0/0 ip address 10.1.1.11 255.255.255.0 ip default-gateway 10.1.1.1 ip http server
branch 2 configuration
no ip routing interface GigabitEthernet0/0 ip address 10.2.2.22 255.255.255.0 ip default-gateway 10.2.2.2 ip http server
After you build the lab, you are off to go!.
Setup IPsec Tunnel between Paloalto and PFsense.
Configure Palo Alto Site To Site VPN Using IPsec.
Fix USB Ethernet Not Recognized By pfSense.
Install PfSense on VirtualBox.
Install Pfsense On KVM.
Install PfSense On VMware Workstation.
Steps to configure the Site to Site VPN in Pfsense.
- Allow ICMP packet.
- Build the IPsec Tunnel.
- PfSense allow IPsec traffic
- Pfsense IPsec Verification.
The primary check that you have to perform before you build any IPsec tunnel is to verify remote peers’ reachability. You can use Ping to verify the other side, unfortunately, the communication from the outside to the Firewall outside interface is disabled.
So you need to create a rule to allow only ICMP packets for the remote peers. This step is not necessary, though, but it would make our life a lot easier when you wanted to troubleshoot some issues in the future.
Note: While allowing anything from outside in the real network, make sure you allow only ICMP and nothing else. It is not recommended to expose any other protocol to the internet-facing IP.
1. Allow ICMP packet.

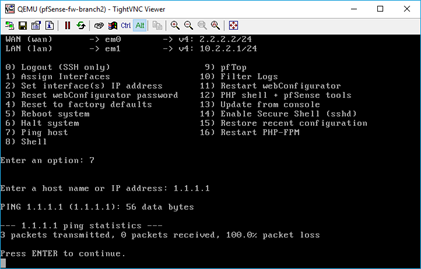

First, let’s go ahead and initiate a ping from Branch2 outside IP (22.214.171.124) to Branch1 (126.96.36.199) outside IP.
In the console, press 7 and enter the public IP of the Branch1 Firewall.
As you can see, I am trying to ping 188.8.131.52 from the Branch2 Firewall, but I can’t.
How about my internet router IP 184.108.40.206? Will I be able to communicate?
And Yes, I can communicate with that IP, and it works just fine.
This indicates that the Firewall blocks the Ping. Let’s allow communication using Pfsense easy rule.
Allow ICMP with PFsense EASY rules.
Instead of creating the rules manually, there is an easy way you can create Pfsense rules. It is called easy rules. When we initiated the Ping from branch2 to branch1, it should trigger logs for the same, and with the help of the logs we will create rules right within those logs, so let’s take a look.
The Ping was not working on the Branch1 Firewall outside IP.
- Access the web GUI of the Branch1 Firewall.

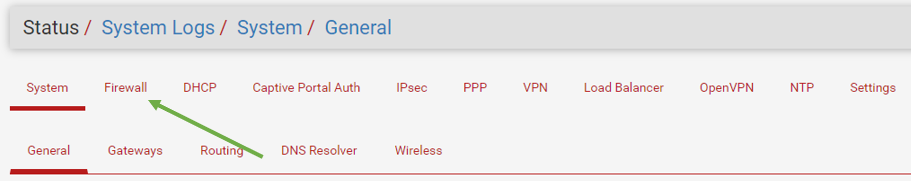

- Click on Status, and in the dropdown list, click on System logs.
